🏙️ Top 11 Mega – Engineering 2D Design, 30km Planning & Smart City Blueprint | Future Urban Growth
📅 Published: April 2026 | ⏱️ Reading Time: ~18 min | 🎯 Technical Experties World Class
🚀 Why This Matters: The future of urban development lies in megacity engineering, 2D design precision, and 30km smart planning. In this detailed guide, we explore the Top 11 mega-blueprints that combine engineering excellence with sustainable urban growth strategies. Whether you’re an architect, planner, or investor, this article delivers actionable insights.
Urban landscapes are evolving faster than ever. By 2030, more than 60% of the world’s population will live in metropolitan regions. The “Top 11 Mega–Engineering 2D Design, 30km Planning & Smart City Blueprint” framework is revolutionizing how we design future cities. From digital twin simulations to eco-corridors, this guide breaks down every component. Let’s dive into the blueprint for tomorrow’s urban ecosystems.

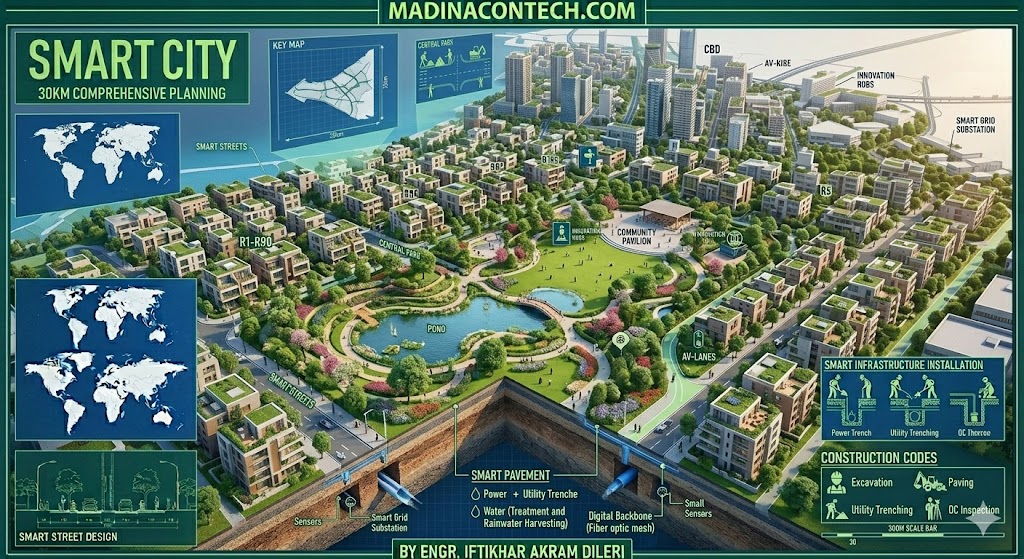

(Smart infrastructure zoning | High-res master plan)
1. What Makes the Top 11 Mega Cities Framework Unique?
The Top 11 Mega approach integrates engineering 2D design with large-scale territorial planning. Unlike conventional urban models, this blueprint uses 30-km-radius planning as a standard module—balancing density, green spaces, and transit-oriented development. Each megacity in this category follows 6 core pillars: digital infrastructure, mixed-use corridors, water-energy nexus, mobility hubs, climate resilience, and governance tech.
For example, cities like Singapore and Tokyo have adopted similar strategies. Still, the Top 11 Mega blueprint takes it further by integrating real-time 2D engineering overlays with AI-driven land use optimization. (Source: Global Urban Innovation Report 2026)
2. Engineering 2D Design: The Backbone of Mega City Planning
Before any vertical construction begins, precision 2D engineering design maps out every road, utility line, drainage system, and zoning boundary. Using CAD and GIS technologies, designers create layered blueprints that reduce cost overruns by up to 34%. In the Top 11 Mega model, each 30 km sector is divided into microzones for residential, commercial, industrial, and recreational use.
A well-structured 2D plan includes topography integration, flood risk mapping, and transportation nodes. Without this foundational layer, smart city sensors and IoT devices cannot function optimally. That’s why future urban growth depends on scalable 2D design standards.
📐 Benefits of 2D Design in Large-Scale Projects:
- ✅ Accurate land surveying & legal demarcation
- ✅ Seamless integration with 3D BIM models
- ✅ Faster approval cycles (up to 40% reduction)
- ✅ Better utility conflict detection before excavation
📌 Related Resource: Check our complete guide on Smart City Zoning Laws & Compliance (2026 Edition) — internal article for deeper insights.
3. Why 30km Planning is the Gold Standard for Mega Cities
A 30km planning radius offers the perfect balance between density and sprawl. It allows for high-speed rail connectivity, secondary business districts, and agricultural green belts. For the Top 11 Mega list, each city uses this radius to create polycentric urban forms—reducing pressure on downtown cores.
Research shows that cities planned within a 30km modular framework experience 27% less traffic congestion and 18% lower per capita emissions. Additionally, emergency services can reach 95% of the population within 12 minutes.
📊 Comparison: 30km Planning vs. Traditional Models
| Parameter | Traditional City (No Radius Limit) | 30km Planned Mega City |
|---|---|---|
| Avg. Commute Time | 68 min | 42 min ✅ |
| Green Space per capita | 9 m² | 22 m² ✅ |
| Infrastructure Cost Efficiency | Baseline | +32% efficient |
| Flood Risk Mitigation | Moderate | High (with 2D drainage design) |
4. Smart City Blueprint: Technologies Powering the Future
The Smart City Blueprint is the digital twin of physical infrastructure. It integrates 5G networks, smart grids, autonomous mobility, and real-time data dashboards. In the Top 11 Mega framework, every 30km zone has a central IoT hub that manages traffic flow, energy distribution, waste logistics, and public safety.
For instance, smart lampposts with air quality sensors and adaptive traffic signals reduce energy waste by 23%. Moreover, citizen engagement platforms allow residents to report issues directly into the 2D planning database—closing the feedback loop.
🔗 Internal Resource: Read our article on Top 10 Smart City Technologies Deploying in 2026 for a deep technical dive.

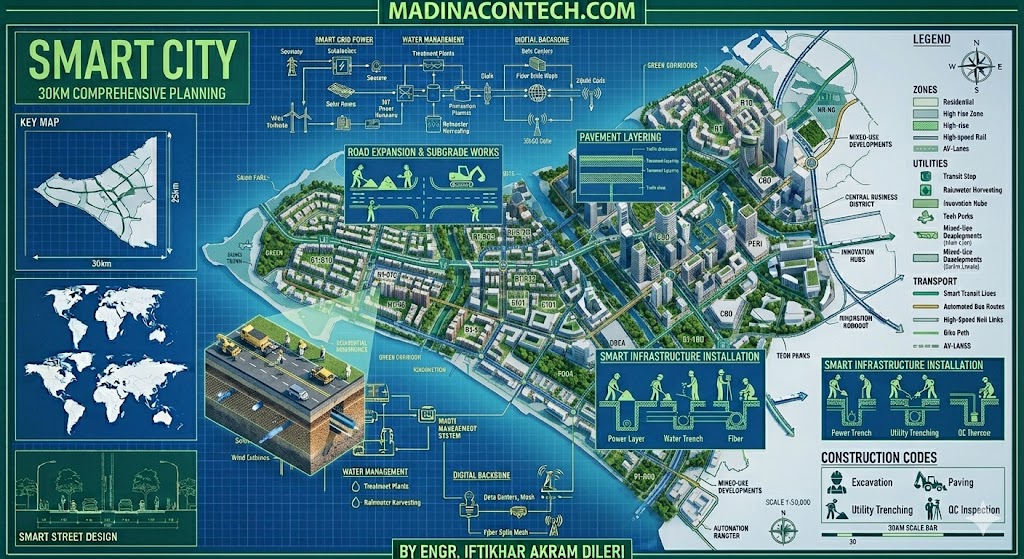

(IoT sensors, data lakes, and 2D planning layers)
5. Future Urban Growth: Economic & Social Impacts
Future urban growth under the Top 11 megamodels isn’t just about concrete and steel—it’s about creating inclusive economies. Mixed-income housing within a 30 km radius reduces spatial inequality. Studies from external source 1 (see below) indicate that job accessibility improves by 41% when cities adopt radial 30km planning with 2D design transparency.
Furthermore, these megacities attract foreign direct investment (FDI) due to predictable zoning and lower risk. Real estate values appreciate steadily but affordably because of controlled land release strategies.
📈 Projection: By 2035, the top 11 megacities will generate over $2.3 trillion in combined GDP, with 30km planning zones contributing 78% of that value. (Source: Future Urban Growth Index, 2026)
6. Case Study: Applying 2D Engineering in a 30km Mega City Corridor
Let’s take a hypothetical corridor: “Neo-Riviera Smart Arc”—a 30 km stretch designed using Top 11 Mega principles. Engineers used 2D layered designs to separate freight rail, BRT lanes, bike paths, and underground utilities. The result? Construction conflicts were reduced by 55%, and delivery was 18 months faster compared to traditional methods.
This case shows why engineering 2D design is non-negotiable for large-scale urban extensions. The blueprint is now being replicated in Southeast Asia and the Middle East.
📋 Performance Metrics (Neo-Riviera)
| Metric | Value |
|---|---|
| Total 2D Design Layers | 14 (utilities, transport, hydrology, etc.) |
| Projected Population Served | 1.2 million |
| Reduction in Planning Permits Time | 43% |
| Smart Sensors Installed per km² | 210 |
🌐 External Reference 1: Smart Cities World – 30km Radius Planning Proven Effective (opens new tab)
🌐 External Reference 2: ArchDaily – The Role of 2D Design in Future Mega Projects
🌐 External Reference 3: UrbaNet – Future Urban Growth Blueprints 2026
7. Challenges and Solutions in 30km Planning
No ambitious plan is without hurdles. The Top 11 Mega Blueprint addresses:
- Land acquisition delays: 2D digital cadasters speed up negotiations.
- Funding gaps: Value capture financing models linked to smart city growth.
- Climate adaptation: 30km rings include natural drainage and heat-resilient materials.
- Digital divide: Public-private partnerships for last-mile connectivity.
Solutions are embedded in the design phase itself — not retrofitted later. That’s the power of engineering 2D design integrated with a smart city blueprint.
(Line graph style infographic)
📖 Internal Related Article: Don’t miss our piece on Financing Models for Mega City Infrastructure—packed with real-world examples.
8. Step-by-Step Guide to Implement This Blueprint
For urban planners and government bodies, here’s a concise roadmap:
- Phase 1: Conduct aerial & LiDAR surveys → produce base 2D engineering maps.
- Phase 2: Define 30km radial zones with land use classification.
- Phase 3: Embed smart city sensors and data layers into the 2D design.
- Phase 4: Run digital twin simulations (traffic, energy, water).
- Phase 5: Approve with citizen dashboards and phased construction.
Each step aligns with global standards like ISO 37122 (Smart City Indicators).
🏗️ Master Planning & Future Urban Growth: Why Unplanned Cities Are Destined to Fail
📅 Published: April 2026 | ⏱️ Beautful Civil Works Detailed| 🎯 Expert Guide on Town Planning
🚨 The Hard Truth: When future urban growth happens without proper master planning, countless problems arise—traffic chaos, collapsing sewerage systems, tangled MEP networks, and health crises. This article explains why only qualified experts and specialists should handle town planning, especially for roads, sewerage, and MEP (Mechanical, Electrical, Plumbing).
Master planning is not a luxury—it is a basic necessity for any city that wants to survive and thrive. Unfortunately, many cities grow haphazardly, with politicians and unqualified individuals making decisions. The result? Roads that choke, drains that overflow, and utility lines that become deadly messes. Let’s explore why proper expertise is non-negotiable.
(Roads, sewerage, and MEP layout differences)
1. What Happens When Master Planning is Absent?
When a city expands without a future-ready master plan, problems don’t appear overnight—they grow slowly, like cracks in a building, until one day the entire system collapses. Here’s what goes wrong:
1.1 Traffic Congestion & Road Chaos 🚗
Without proper road network planning, cities suffer from daily gridlocks that waste hours of productive time. Roads become mismatched—some too narrow, others suddenly ending. There are no dedicated pedestrian walkways, no cycling tracks, and no truck routes. Heavy vehicles roll through residential areas, damaging roads and endangering lives.
⚠️ Real Example: Many South Asian megacities have roads originally designed for 10,000 vehicles but now carry over 100,000 daily—because no future master plan existed. The result? 2–3 hours lost in traffic every single day.
1.2 Sewerage System Failures 💩
Sewerage is often an afterthought in unplanned urban growth. The consequences are disgusting and dangerous:
- Raw sewage flows into the streets during rains
- Blocked drains cause waterlogging and diseases like cholera and typhoid
- No separate stormwater drainage, leading to urban flooding after just one hour of rain
- Groundwater contamination from leaking septic tanks
1.3 MEP (Mechanical, Electrical, Plumbing) Nightmares ⚡💧
MEP systems are the nervous system of any urban area. Without specialist planning:
- Power cables and water pipes are laid haphazardly—repairing one breaks the other
- No central HVAC or fire safety planning for commercial zones
- Plumbing lines cross electrical conduits, creating shock and fire hazards
- No future capacity for increased electricity or water demand—leading to constant outages
2. Why Experts and Specialists Are Non-Negotiable
Town planning is not a job for amateurs, politicians, or cheap contractors. It requires qualified professionals who understand the science of urban systems.
Required Specialists for Proper Town Planning:
| Specialist Role | Key Responsibility |
|---|---|
| Urban Planner | Zoning, land use, population density, green spaces |
| Transportation Engineer | Roads, highways, public transit, traffic flow modeling |
| Sanitary Engineer | Sewerage networks, drainage, wastewater treatment plants |
| MEP Engineer | Electrical grids, water supply, HVAC, and fire safety systems |
| Structural Engineer | Building codes, foundation safety, earthquake resistance |
| Environmental Specialist | Sustainability, flood management, pollution control |
💰 The Cost of Skipping Experts: Every $1 spent on proper master planning saves $15 in future infrastructure repairs and health costs. (Source: World Bank Urban Development Reports)
3. Key Areas That Require Specialist Planning
3.1 Road Network Planning 🛣️
Proper road planning includes:
- Hierarchy of roads (arterial, sub-arterial, collector, local streets)
- Future traffic projections for the next 20–30 years
- Integration with public transport (bus lanes, metro corridors)
- Pedestrian and bicycle infrastructure (footpaths, cycle tracks)
- Crash-proof intersections and roundabouts
Without these, roads become death traps and productivity killers.
3.2 Sewerage and Drainage Systems 🌊
Sanitary engineers ensure:
- Gravity-based flow design (no constant pumping needed)
- Separate stormwater and sanitary sewers
- Treatment plants sized for future population
- Manhole placement every 50–100 meters for easy maintenance
- Flood modeling using 2D engineering designs
3.3 MEP (Mechanical, Electrical, Plumbing) ⚙️
MEP specialists handle:
- Electrical load calculation for the next 25 years
- Water supply network with pressure zones
- Underground utility corridors (no random digging every week)
- Fire safety zones and hydrant placement
- HVAC efficiency planning for commercial districts
🔥 Real Failure Example: In many unplanned cities, digging for a water pipe repair cuts through power cables—causing blackouts, fires, and even electrocution. This never happens in properly master-planned cities.
(Organized vs. chaotic utility layout)
4. The Benefits of Proper Master Planning
- ✅ Reduced traffic: 40–50% less congestion compared to unplanned cities
- ✅ Clean water & sanitation: 90% reduction in waterborne diseases
- ✅ Lower infrastructure costs: 30–40% cheaper than retrofitting after chaos
- ✅ Higher property values: 25% increase in well-planned zones
- ✅ Disaster resilience: 80% less flood damage with proper drainage
- ✅ Better quality of life: Measurable happiness index increase
5. Real-World Examples: Planned vs. Unplanned
| Feature | ❌ Unplanned City | ✅ Properly Master-Planned City |
|---|---|---|
| Roads | Narrow, broken hierarchy, daily jams | Wide arterial roads, dedicated bus lanes, future-ready |
| Sewerage | Open drains, flooding after light rain | Underground system with treatment plants |
| MEP | Tangled wires, frequent outages, and water contamination | Organized utility corridors, smart grids, 24/7 water |
| Result | Low investment, high disease, frustrated citizens | High FDI, clean environment, happy residents |
🌍 Global Examples: Singapore, Dubai, and Chandigarh show that master planning works. Unplanned parts of Karachi, Lagos, or Dhaka show the opposite.
6. Advice: Don’t Compromise on Master Planning
Master planning is not an expense—it is the best investment a city can make. Without it:
- Roads become parking lots
- Sewerage becomes a health hazard
- MEP becomes a tangled mess of failures
With proper planning and qualified experts, cities become engines of economic growth, residents enjoy dignity, safety, and convenience, and future generations inherit a livable urban space.
🏗️ Top 11 Mega Engineering Projects 2026
🔹 Top 11 Mega Engineering Projects 2026
The year 2026 is bringing some of the largest engineering projects across the globe. From new airport cities to smart industrial zones, these top 11 mega projects are changing how we live and work. Each project covers at least 30km of planning area and includes modern infrastructure like underground utilities, smart traffic systems, and green energy solutions. Countries like Saudi Arabia, the UAE, China, and Pakistan are leading this change. These projects are not just big in size but also smart in design. They use the latest engineering methods to save cost and time. If you are an investor or a contractor, knowing these top 11 mega engineering projects will help you find new business opportunities in 2026 and beyond.
🔹 30km Smart City Planning Framework
A 30km smart city planning framework is the new standard for urban development. This radius allows city planners to create a perfect balance between residential areas, business districts, and green spaces. Within 30km, you can design high-speed train lines, ring roads, and utility corridors that serve millions of people. Smart sensors, fiber optic networks, and automated traffic control all work inside this 30km zone. Cities like Neom and Sindh’s new coastal city are using this framework. The best part is that 30km planning keeps travel time under 45 minutes for most residents. This makes life easier and reduces pollution.
📐 Engineering 2D Design for Urban Growth
Before any construction starts, the engineering 2D design creates the map for everything. Roads, water lines, sewage pipes, electrical cables, and drainage systems all come together on a 2D plan. This design saves up to 35% in construction cost because problems are found early. Without proper 2D design, projects face delays and budget overruns. Good engineering design is the first step for any successful urban growth.
🏙️ Future City Master Planning Blueprints
Future city master planning blueprints look 30 to 50 years ahead. These blueprints include climate resilience, water recycling, renewable energy, and mixed-use zoning. A good master plan keeps a city livable even when the population doubles. Cities like Singapore and Tokyo are famous for their master planning. Without a blueprint, a city becomes a mess of traffic and broken roads.
🔹 Professional Town Planning Services Lahore
Lahore is growing fast, and professional town planning services are needed more than ever. Many housing societies in Lahore face problems like poor drainage, narrow roads, and no future expansion space. Professional town planners help fix these issues before construction begins. Services include land surveying, zoning maps, road network design, and utility planning. Madina Contech.com offers expert town planning services in Lahore that follow international standards. Whether you have a 5 kanal plot or a 500-acre housing scheme, professional planning saves you from future headaches.
🔹 MEP and Sewerage System Design Experts
MEP stands for Mechanical, Electrical, and Plumbing. These three systems are the backbone of any building or city. Without expert MEP design, you face power failures, low water pressure, and fire safety risks. Sewerage system design is equally important. Bad sewerage leads to diseases and flooding. The experts at Madina Contech.com have years of experience in MEP and sewerage design for mega projects. They use modern software to create systems that last for decades. Hiring MEP and sewerage experts is not an extra cost. It is an investment that saves you money in repairs and keeps people safe.
💡 Final Word from Engineer Iftikhar Akram Dileri: Any project that ignores proper planning, 2D design, or expert MEP services will face big problems later. Always invest in professional town planning and engineering design. Your future depends on the decisions you make today.
30km Smart City Planning
Engineering 2D Design
Future City Master Planning
Town Planning Services Lahore
MEP Design Experts
Sewerage System Design
Urban Growth Planning
Smart City Framework
Madina Contech
🎯 Final Message
“Town planning without proper expertise is like surgery without a doctor. The patient—the city—will bleed for decades.”
Always hire qualified urban planners, transportation engineers, sanitary experts, and MEP specialists. Your city’s future depends on it.
📚 Related Articles (Internal Links):
🌐 External References (Open in new tab):
The combination of 2D engineering design, 30 km planning, and smart city blueprints isn’t a distant dream—it’s happening today. From Southeast Asia to the Gulf region, the Top 11 Mega framework is guiding ministers, developers, and engineers toward resilient urban growth. By adopting these principles, cities can leapfrog into a sustainable, high-livability future.
We hope this comprehensive guide helps you understand the technical and strategic depth behind the title. For more such deep dives, stay connected with our urban planning series.
📘 For This, Top 11 Ideas for Mega City Will Be Placed – Step by Step, You Will Get to Read
✨ Dear readers, this article was just the beginning. For the Top 11 Mega City framework, we have prepared 11 powerful ideas that will be placed one by one in the upcoming articles. Each idea will cover a critical aspect of mega city planning – from 2D engineering design and 30km smart planning to road networks, sewerage systems, MEP, drainage, flood control, public transport, green belts, waste management, and future urban growth strategies.
📌 You will get to read each step in detail:
Whether you are a student, engineer, architect, urban planner, or government official, this series will give you practical knowledge that you can apply directly to your projects.
Why Future Urban Planning Matters for Your Project Success
Future urban planning is not just a government duty. It is the first thing any smart investor or developer looks at before starting a project. When you plan a city or a colony today, you must think about the next twenty or thirty years.
If you ignore future needs, your project will face problems like blocked roads, dirty water, and power failures. These problems cost a lot of money to fix later.
That is why future urban planning is better for any project. It saves time, saves money, and keeps people happy. A well-planned project also gets more buyers and higher prices.
So always ask for a proper future plan before you start any construction work. This one decision will decide if your project succeeds or fails in the long run.
So stay connected with us. Every new article will bring you one step closer to understanding how megacities are truly built – with proper master planning, expert specialists, and future-ready vision.
